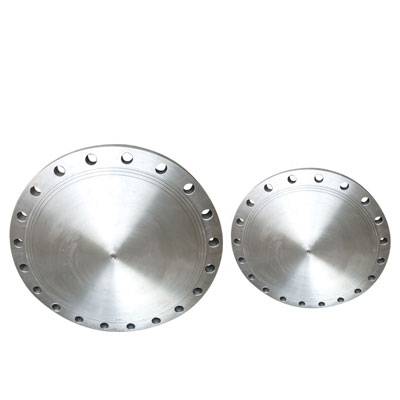

SS 316L Blind Flanges

Stainless Steel 316L Blind Flanges

The stainless steel products are available in different grades, all of which are distinct in certain features, and one such prominent grade is the 316. Within this grade, the stainless steel alloy is incorporated with an increased amount of molybdenum along with the other elements. The 316 grade is further modified into 316L and 316H, where 316L contains a lower amount of carbon and 316H has a higher quantity of carbon. Here, we’ll discuss the ASTM A182 SS 316L BLRF Flanges. As mentioned above, this grade contains a lower amount of carbon in the compositions, making it even more durable against corrosion since it prevents the formation of carbide precipitate, known for promoting corrosion.

The properties exhibited by the SS 316L Blind Raised Face Flanges are primarily because of the presence of molybdenum and the lower fraction of carbon than normal. The specific property is its resistance against corrosive agents such as hydrochloric acid, sulfuric acid, etc. Apart from operating effortlessly around liquid acids, the blind flanges possess increased tensile strength and thermal stability, enabling them to withstand aggressive temperature and pressure conditions. The characteristics of the grade in consideration against heat are already present in the flanges without subjecting them to welding. The stability and durability are also commendable in maintaining the physical structure of the flanges intact through harsh conditions and stress. The decreased proportion of carbon and the enhancement of their properties allows the Stainless Steel 316L BLRF Flanges to be useful in nuclear power plants, the food industry, oil and gas

Specifications of SS 316L Blind Flanges

Specifications : ASTM A182 / ASME SA182

Dimensions : ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc

Size : 1/2″ (15 NB) to 48″ (1200NB)

Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Stainless Steel 316L Blind Flanges Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17-11-02 / Z3CND18-14-03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316L Blind Flanges (BLRF) Chemical Composition
Grade C Mn Si P S Cr Mo Ni Fe
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.89 min
SS 316L Blind Flanges (BLRF) Mechanical & Physical Properties
Grades Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 316L 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
Types of Stainless Steel 316L Blind Flanges
Stainless Steel 316L Blind Flanges At Best Price

High Quality of Stainless Steel 316L Blind Flange
FOB Price: US $2-3 / Piece

Alloy 1.4404 / 1.4435 / S31603 Flat Face Blind Flange
FOB Price: US $0.15-10 / Piece

316L Austenitic Stainless Steel Blind Flanges
FOB Price: US $3-8 / Kilogram

SS 316L Blind (BLRF) Flanges
FOB Price: US $1500-1600 / Ton

Blind Raised Face Flanges Stainless Steel 316L
FOB Price: US $1.5-200 / Piece

Stockist of various type of BLFF 316L Stainless Steel Flange
FOB Price: US $800-1900 / Ton

SS 316L Blind Flanges Other Available Products

Stainless Steel 316L BLRF Flanges

Class 300 Stainless Steel 316L Blind Flange

Blind SS 316L Raised Face Flanges

ANSI B16.5 Stainless Steel 316L Blind Flanges

Stainless Steel 316L BLRF Flanges Stockholder

ASTM A182 SS 316L BLRF Flanges Suppliers

Stainless Steel 1.4404 / 1.4435 BLRF Flange

SS 316L Blind Raised Face Flanges Stock

ASTM A182 316L Stainless Steel Blind Flanges Dealer

Stainless Steel 316L Blind Flanges Manufacturer

SA 182 F316L SS Blind Raised Face Flanges

Large Selection of SS 316L RFBL Flanges

SS UNS S31603 Flat Face Flanges BLFF

High Pressure SS 316L Blind Flat Face Flanges

AISI 316L Stainless Steel BL flange

Grade 316L Stainless Steel Blind Flange

Stainless Steel 316L Industrial Blind Flanges

Class 900 Stainless Steel 316L BLRTJ Flanges
