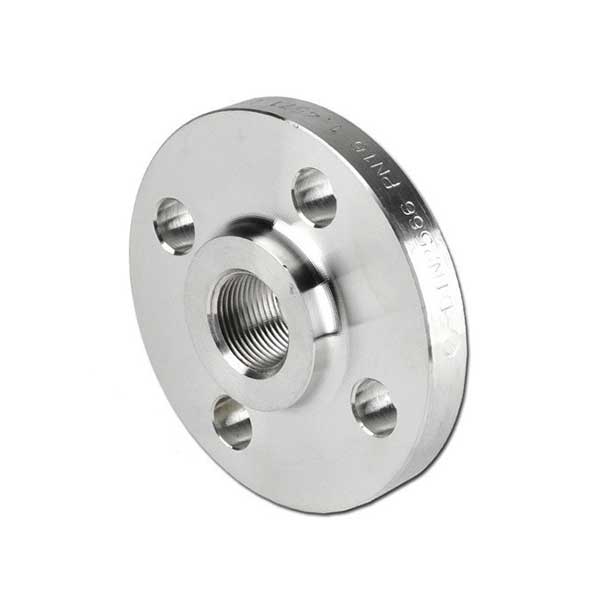

Incoloy 800/H/HT Flanges
Incoloy 800/H/HT Flanges, Incoloy 800H Flanges, Incoloy 800HT Flanges, Incoloy 800 Flanges, Incoloy 800H Pipe Flanges, Alloy 800 Flanges, Alloy 800H Flanges, Alloy 800HT Flanges, Inconel 800 Pipe Flanges, Alloy 800/H/HT Flanges Supplier & Exporter in Mumbai, India
Metal Yard is one of the known manufacturer and suppliers of Incoloy 800/H/HT Flanges, which is extremely functional as it maintains a stable structure, even when exposed to high temperature. Because of their high chromium and nickel contents, Incoloy 800H Flanges and Incoloy 800HT Flanges have excellent resistance to oxidation. Meanwhile, the difference between the H and HT is the restricted aluminium and titanium content in 800HT, which are in fact are austenitic and solid solution alloys. Below 700 Degree C, gamma prime precipitates in Incoloy 800 Flanges combined with loss of ductility, and have excellent creep strength at temperature above 700 Degree C. For applications where frequent excursions to temperatures lower than 700 Degree C during service cannot be excluded or parts of the material are permanently exposed to a temperature below 700 Degree C, the use of Incoloy 800H Pipe Flanges is recommended. Titanium nitrides, titanium carbides, and chromium carbides normally appear in the microstructure of these Alloy 800 Flanges.
ASTM B564 Incoloy 800 Weld Neck Flanges, Incoloy 800 Slip On Flanges, Incoloy UNS N08800 SORF Flanges, ASME 16.47 Series B 800HT Incoloy Flanges, Incoloy 800H Orifice Flanges, Incoloy DIN 1.4876 Blind Flanges, Incoloy UNS N08810 Forged Flanges, 800HT Alloy Threaded Flanges, ANSI B16.5 Incoloy N08811 Flanges, Standard Size Steel Incoloy 1.4859 RTJ Flanges, DIN 1.4958 Reducing Flanges, (ASTM B564, ASME SB564) Manufacturer & Stockist in Mumbai, India
However, the nitrides in Alloy 800H Flanges are stable at all temperatures below the melting point and are therefore unaffected by heat treatment. Alloy 800HT Flanges is also moderate in strength with good resistance to oxidation at elevated temperatures for long periods of time at 1200 Degrees F - 1600 Degrees F. However, the nitrides in Alloy 800H Flanges are stable at all temperatures below the melting point and are therefore unaffected by heat treatment. Alloy 800HT Flanges is also moderate in strength with good resistance to oxidation at elevated temperatures for long periods of time at 1200 Degrees F - 1600 Degrees F. Inconel 800 Pipe Flanges is used in chemical and petrochemical industries, power plants, industrial furnaces and heat treating equipment. Buy Alloy 800/H/HT Flanges at reasonable rates from us.
ASTM B564 Incoloy 800 Industrial Flanges Specification
Size : ½” to 36″
Specifications : ASTM B 564 / ASME SB 564
Standards : ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
800 Incoloy Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Dealer, Distributor & Stockist, Manufacturers of Incoloy 800 Pipe Flanges Chemical Composition
| Grade | C | Mn | Si | Cu | S | Ni | Cr | Fe | Ti | Al |
| Incoloy 800 | 0.1 max | 1.5 max | 1.0 max | 0.75 max | 0.015 max | 30-35 | 19-23 | 39.5 min | 0.15-0.60 | 0.15-0.60 |
| Incoloy 800H | 0.05-0.1 | 1.5 max | 1.0 max | 0.75 max | 0.015 max | 30-35 | 19-23 | 39.5 min | 0.15-0.60 | 0.15-0.60 |
| Incoloy 800HT | 0.06-0.1 | 1.5 max | 1.0 max | 0.75 max | 0.015 max | 30-35 | 19-23 | 39.5 min | 0.25-0.60 | 0.85-1.20 |
Incoloy 800 Plate Flanges Mechanical & Physical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / H / HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 800 Flanges Other Available Products
Incoloy 800 Flanges
Incoloy 800 Slip On Flanges
UNS N08800 Incoloy Loose Flanges
800 Incoloy Long Weld Neck Flanges Suppliers
Incoloy 800 Industrial Flanges Dealer
Alloy 800 Ring Type Joint Flanges Stockholder
Incoloy UNS N08800 Orifice Flanges
DIN 1.4876 Incoloy WNRF Flanges
Incoloy 800 SORF Flanges
800 Incoloy Screwed Flanges
ASTM B564 Incoloy 800 Plate Flanges
Incoloy 800 Socket Weld Flanges
Incoloy 800 Blind Flanges
800 Incoloy Weld Neck Flanges
800 Incoloy Threaded Flanges
Incoloy 800 Reducing Flanges Exporter
Alloy 800 Incoloy Forged Flanges Distributors
Incoloy 800 Spactical Blind Flanges Manufacturer
DIN 2.4858 Incoloy RTJ Flanges
Incoloy 800 SWRF Flanges
800 Incoloy BLRF Flanges Stockist
ASME SB564 Incoloy 800 Pipe Flanges
