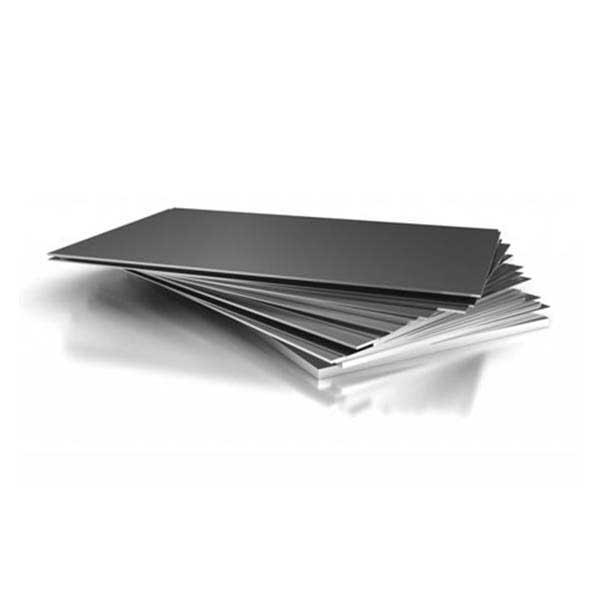

Incoloy 825 Sheets and Plates

INCONEL 825 Sheet & Plate mainly consists of Nickel, chromium, and iron. This grade provides an excellent resistance against mineral acids like sulfuric and phosphoric acids. It also holds excellent resistance to pitting and good corrosion resistance. If you are searching for the best place to buy Inconel 825 sheets plates? Read this article carefully.

Metal Yard India is one of the leading Manufacturer and supplier of best quality Inconel 825 Sheets and plates. The range of size of sheets and plates is 4 mm to 90 mm. And thickness ranges from 2200 mm and 5500 length. This grade helps to avoid stress corrosion and cracking. Due to its unbeatable properties, it is used in the application including chemical processing, pollution control, acid production, hot vessels for food and seawater, marine systems. It can be used in elevated temperatures up to 1020 degrees F.

Its Fabrication is typical of nickel-base alloy, which gives it potential and thus, they are readily formable and weldable. This alloy can also be strengthened by cold work. Specification of Inconel 825 sheet & plate is ASTM / ASME SB 424.

Testing: Our prime aim is to provide quality assured product to the customers. Thus to ensure the quality of the product we check the end product under certain conditions. The testing process includes a flaring test, flattering test, chemical analysis, pitting resistance test, etc.

Packing and shipping: Each order is packed in pallets, wooden case, or as per the client’s requirement. All shipping documents are provided By Metal Yard India to its customers. Documents include a commercial invoice, fumigation certificates, raw material test reports, quality assurance plan, heat treatment charts, guarantee letter, etc.

ASTM B424 Incoloy 825 Sheets, Plates Specification

Specifications : ASTM B424 / ASME SB424

Item : Incoloy Coils (Hot rolled, cold rolled)

Standard : JIS, AISI, ASTM, GB, DIN, EN, etc

Surface : the surface and finish of Incoloy Coils: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc

Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Manufacturer : POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu

Thickness : 0.3~10.0mm

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)

End : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

Grades : 825

Incoloy 825 Sheets, Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo

Incoloy 825 Sheet, Plate Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38 – 46	19.50 – 23.50	0.02 max	0.06 – 1.20

825 Incoloy Plates, Sheets, Coils Mechanical & Physical Properties

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %
