Metal Yard supplies paddle spacer flanges, also known as 'paddle blinds and blanks', which are used for line isolation in pipelines carrying liquids, gas or steam. Unlike a permanent line blind, this style of flanged spacer is installed between two existing flanges and blocks flow only when required. This distinction is particularly significant during shutdowns and turnaround operations, as crews require a device that is both swiftly installed and quickly removed.

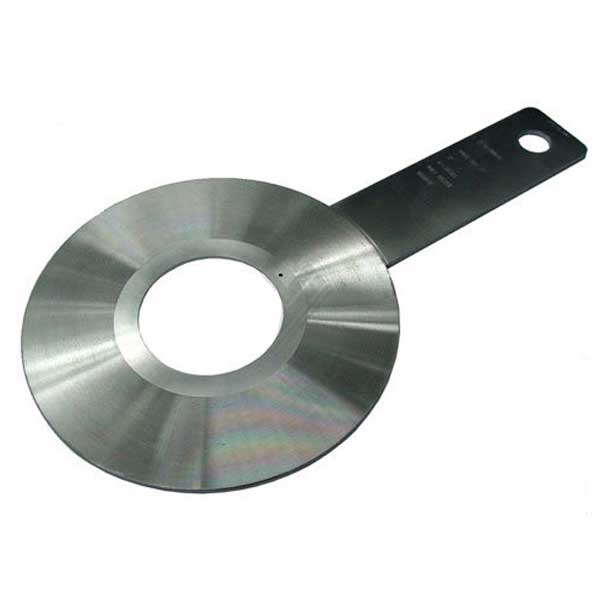

The design features a single metal disc with a handle, sized to fit between the outer diameters of two mating flanges. Metal Yard most commonly stocks Inconel and stainless steel, though other alloys can be supplied to written specification. Compared with full blind flanges, the lower weight reduces rigging time in confined pipe racks. Good engineering practice for line blind valves and spacers calls for the plate thickness to match the rated pressure class, and each disc is checked against that requirement before dispatch.
Paddle spacers are available in sizes from 15 NB to 48 NB, with ANSI pressure classes 150, 300, 600, 900 and 2500, as well as DIN ratings ND10, ND16 and ND25. Available face types include raised face, flat face and ring-type joint, so they can match the mating flange requirements. Manufacturing complies with the relevant ASME and DIN construction codes, and dimensions can be customised on request when a project specification falls outside the standard range.
These plates are removed during scheduled maintenance, pipeline clearing and pressure testing, then reinstalled once the work is complete. They allow a crew to isolate one section of a line without shutting down the entire system while keeping the rest of the process operating.
Metal Yard manufactures and exports paddle spacer flanges worldwide.
Dimensions : ANSI B16.48, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2" (15 NB) to 48" (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Stainless Steel Paddle Spacers (Ring Spacers) : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Paddle Spacers (Ring Spacers) : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Paddle Spacers (Ring Spacers) : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Paddle Spacers (Ring Spacers) : ASTM A350, LF2, LF3
Alloy Steel Paddle Spacers (Ring Spacers) : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Paddle Spacers (Ring Spacers) : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Paddle Spacers (Ring Spacers) : ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Paddle Spacers Flange
Paddle Spacers Flanges Supplier in india
Ring Spacers Flange Supplier in Mumbai
Paddle Spacers Flanges Manufacturer
Class 300, 600 Ring Spacers
A182 SS Paddle Spacers Stockholder
DIN2566 / DIN2573 Ring Spacers
Duplex Steel BS4504 / BS1560 Ring Spacers
Super Duplex Steel Paddle Spacers
SS Paddle Spacers Flanges Supplier in India.
Stainless Steel Ring Spacers Distributors
Copper Nickel Paddle Spacers Exporter
ANSI B16.48 Ring Spacers Manufacturer in India
Inconel / Incoloy ANSI B16.47 Paddle Spacers
Monel Paddle Spacers Stockist
Titanium Ring Spacers
Carbon Steel Paddle Spacers
Nickel Alloy Ring Spacers
We are Exporter of Ring Spacers in Worldwide Such as India, Turkey, Angola, Argentina, India, Israel, United Arab Emirates, New Zealand, Canada, Sweden, Ukraine, Azerbaijan, Belgium, Bulgaria, Hong Kong, Thailand, Libya, Spain, Iran, Brazil, Chile, Tibet, Singapore, Chile, Nigeria, Mongolia, Trinidad & Tobago,Tunisia, Jordan, Namibia, Bhutan, Portugal, Philippines, Greece, Kazakhstan, Mexico, Egypt, Kenya, Poland, Yemen, United Kingdom, Denmark, Costa Rica, Italy, Malaysia, Germany, United States, Puerto Rico, Bahrain, Ireland, Croatia, China, Lithuania, Poland, South Africa, Belarus, Netherlands, Finland, Macau, Peru, South Korea, Austria, Iran, Pakistan, Colombia, Venezuela, Romania, Vietnam, Afghanistan, Nigeria, Japan, Czech Republic, Australia, Qatar, Saudi Arabia, Mexico, Bangladesh, Morocco, Kuwait, Ecuador, Russia, Norway, Iraq, Oman, Nepal, Taiwan, Zimbabwe, France, Estonia, Gambia, Indonesia, Lebanon, Hungary, Gabon, Serbia, Algeria, Ghana, Switzerland, Bolivia, Slovakia, Sri Lanka.
We are Suppliers of Paddle Spacers in India Such as Mumbai, Chandigarh, Gimhae-si, Singapore, Ahmedabad, Courbevoie, Seoul, Montreal, Thiruvananthapuram, Kanpur, Ernakulam, Istanbul, Jeddah, Doha, Santiago, Hong Kong, Caracas, Ulsan, Dammam, Jakarta, Nashik, Jaipur, Rajkot, Riyadh, New Delhi, Chiyoda, Indore, Dallas, Noida, Baroda, Jamshedpur, Manama, Lahore, Haryana, Bogota, Bhopal, Secunderabad, Port-of-Spain, Sydney, Toronto, Lagos, Vung Tau, Al Khobar, Mexico City, Petaling Jaya, Gurgaon, Los Angeles, Bengaluru, Dubai, Ahvaz, Kuwait City, Chennai, Madrid, Thane, Calgary, Atyrau, Ho Chi Minh City, Abu Dhabi, Geoje-si, New York, Rio de Janeiro, Mumbai, Nagpur, Al Jubail, Ranchi, Navi Mumbai, Muscat, Brisbane, Kolkata, Surat, Sharjah, Hanoi, Milan, London, Aberdeen, Howrah, Visakhapatnam, Pune, Kuala Lumpur, Coimbatore, Cairo, Ludhiana, Algiers, La Victoria, Colombo, Hyderabad, Pimpri-Chinchwad, Edmonton, Houston, Vadodara, Bangkok, Moscow, Melbourne, Karachi, Busan, Perth, Ankara, Granada, Tehran, Faridabad.
Flanged spacers isolate a section of pipe between two flanges without cutting the line. They completely stop flow during maintenance, testing, or shutdown work, then are removed once the section returns to service.
Paddle spacers block flow at a specific point in a pipeline, usually during a turnaround or inspection. The handle lets crews slide the disc in or out between flanges without dismantling the joint.
Yes, there is a difference. A paddle spacer is a solid disc that blocks flow fully, while a paddle flange, sometimes called a spacer ring, is an open ring that lets flow continue once the line is back in service.
Sizes range from 15 NB to 48 NB in ANSI classes 150#, 300#, 600#, 900# and 2500# and DIN ratings ND10, ND16 and ND25.
Paddle spacers and flanged spacers allow a section of pipe to be isolated without draining or shutting down the entire system. Maintenance crews can work on one segment while the rest of the line stays in service.
