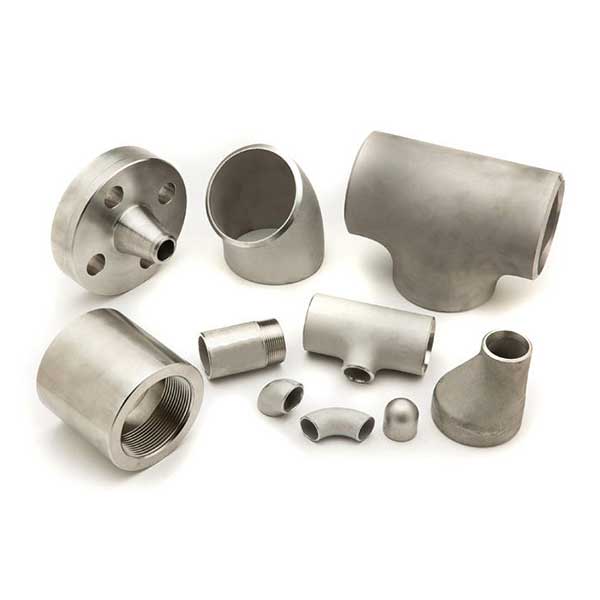

Incoloy 800/H/HT Fittings

Metal Yard is one of the known stockist and suppliers of Incoloy 800/H/HT Pipe Fittings, which is more stable in melts between 1000 Degree C and 1190 Degree C. In mixtures of nitric and hydrofluoric acids such as those used in pickling of stainless steels and reprocessing of nuclear fuel elements, Incoloy 800 Pipe Fittings has displayed excellent corrosion resistance. At boiling temperatures, Incoloy 800H Pipe Fittings is resistant to lower acid concentrations. Incoloy 800HT Pipe Fittings can be machined using conventional machining methods which are used for iron-based alloys. Machining operations in Incoloy 800 Butt Weld Pipe Fittings are performed using commercial coolants. Incoloy 800H Butt Weld Pipe Fittings has high strength and toughness in the temperature range cryogenic to 1093 Degree C which is derived largely from the solid solution effects of the refractory metal, columbium and molybedenum, in a nickel-chromium matrix. Incoloy 800HT Butt Weld Pipe Fittings can be formed using all conventional techniques.

Alloy 800 Pipe Fittings is welded using gas-tungsten arc welding, shielded metal-arc welding, gas metal-arc welding, and submerged-arc welding methods. Alloy 800H Pipe Fittings does not react to heat treatment. Alloy 800HT Pipe Fittings is cold worked using standard tooling. Exceptionally low content of carbon and refining the Ti:C ratio in Incoloy 800 Butt Weld Fittings raises the structure and stability of the biggest anti-allergy activity and conflict to intergranular corrosion. Low temperature annealing in Incoloy 800H Butt Weld Fittings with around 950 Degree C guaranteed fine grain structure.

ASTM B366 Incoloy 800 Pipe Fittings Specification

Size : ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS.

Specifications : ASTM B 366 / ASME SB 366

Standards : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Schedule : Sch 5 TO Sch XXS.

Type : Seamless / Welded / Fabricated

ASTM B564 Incoloy 800 High Pressure Forged Fittings Specification

Size : ⅛” to 4”

Specifications : ASTM B 564 / ASME SB 564

Standards : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Class : 2000 LBS, 3000 LBS, 6010 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

800 Incoloy Pipe Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	XH32T

Incoloy 800 Butt weld Fittings Chemical Composition

Grade	C	Mn	Si	Cu	S	Ni	Cr	Fe	Ti	Al
Incoloy 800	0.1 max	1.5 max	1.0 max	0.75 max	0.015 max	30-35	19-23	39.5 min	0.15-0.60	0.15-0.60
Incoloy 800H	0.05-0.1	1.5 max	1.0 max	0.75 max	0.015 max	30-35	19-23	39.5 min	0.15-0.60	0.15-0.60
Incoloy 800HT	0.06-0.1	1.5 max	1.0 max	0.75 max	0.015 max	30-35	19-23	39.5 min	0.25-0.60	0.85-1.20

Incoloy 800 Butt weld Pipe Fittings Mechanical & Physical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 800 / H / HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

800 Incoloy Forged Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	XH32T

Incoloy 800 Forged Pipe Fittings Chemical Composition

Grade	C	Mn	Si	Cu	S	Ni	Cr	Fe	Ti	Al
Incoloy 800	0.1 max	1.5 max	1.0 max	0.75 max	0.015 max	30-35	19-23	39.5 min	0.15-0.60	0.15-0.60
Incoloy 800H	0.05-0.1	1.5 max	1.0 max	0.75 max	0.015 max	30-35	19-23	39.5 min	0.15-0.60	0.15-0.60
Incoloy 800HT	0.06-0.1	1.5 max	1.0 max	0.75 max	0.015 max	30-35	19-23	39.5 min	0.25-0.60	0.85-1.20

Incoloy 800 High Pressure Forged Fittings Mechanical & Physical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 800 / H / HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %
