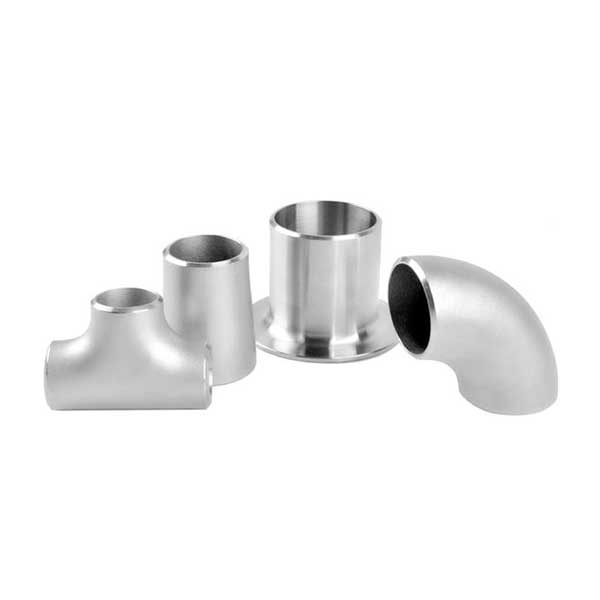

Metal Yard is one of the well-known manufacturers and suppliers of Inconel 625 Pipe Fittings, which retains its excellent ductility and toughness at low temperature. Sodium hydride baths are necessary to descale this Inconel 625 Butt Weld Fittings. After the sodium hydride treatment, Inconel 625 Butt Weld Pipe Fittings should be immersed in a sulfuric acid bath 165D Degree F (74 Degree C) for approximately 3 minutes. Because of its good ductility, Alloy 625 Pipe Fittings is also readily formed by cold working. However, Alloy 625 Butt Weld Fittings does work as toughen with rapidly so transitional annealing conducts may perhaps be required for complex part forming actions. Typical applications for Alloy 625 Butt Weld Pipe Fittings have included heat shields, furnace hardware, gas turbine engine ducting, combustion liners and spray bars, chemical plant hardware and special seawater applications. Any customary welding methods can be utilized to weld Incoloy 625 Pipe Fittings to same alloys or other, such as GTAW, PAW, MIG and so on.
The combination of these elements in Incoloy 625 Butt Weld Fittings provides for a superior resistance to a variety of corrosive environments of a rather unusual severity in addition to high temperature effects like oxidation and carburization. Annealed Incoloy 625 Butt Weld Pipe Fittings, when chosen for some other deliberation, will display acceptable creep-rupture features for a lot of applications, though the standards are not as soaring as those publicized for solution treated product. Buy Alloy 625 Fittings at reasonable rates from us.
Size : ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS.
Specifications : ASTM B 366 / ASME SB 366
Standards : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Schedule : Sch 5 TO Sch XXS.
Type : Seamless / Welded / Fabricated
Size : ⅛” to 4”
Specifications : ASTM B 564 / ASME SB 564
Standards : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class : 2000 LBS, 3000 LBS, 6250 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | ЭИ602 |
| Grade | C | Mn | Si | P | S | Ni | Cr | Fe | Mo | Co | Al | Ti | Nb + Ta |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.015 max | 58.0 min | 20.0 – 23.0 | 5.0 max | 8.0 – 10.0 | 1.0 max | 0.40 max | 0.40 max | 3.15 – 4.15 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 135,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | ЭИ602 |
| Grade | C | Mn | Si | P | S | Ni | Cr | Fe | Mo | Co | Al | Ti | Nb + Ta |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.015 max | 58.0 min | 20.0 – 23.0 | 5.0 max | 8.0 – 10.0 | 1.0 max | 0.40 max | 0.40 max | 3.15 – 4.15 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 135,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
