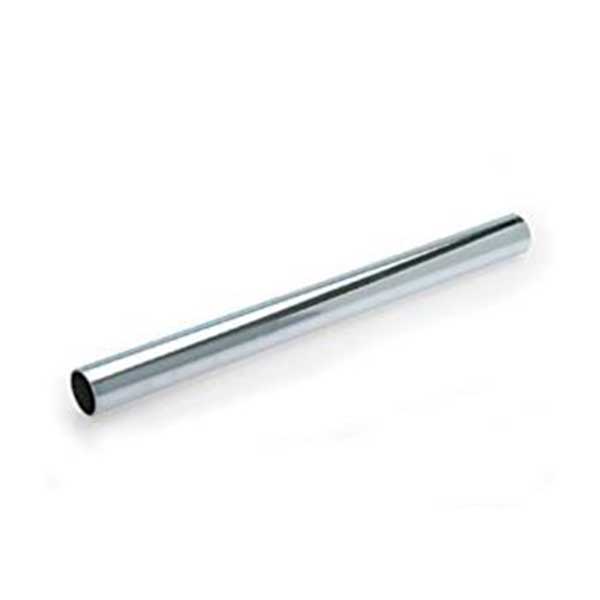

Incoloy 825 Pipe & Tube

Incoloy 825 Pipe & Tube

Metal Yard is one of the renowned manufacturer and suppliers of Incoloy 825 Tubes & Pipes, which are heat conducted in the course of making this to form the best combination of corrosion resistance, stabilization, formability, and mechanical properties. Incoloy 825 Pipes has good mechanical properties from cryogenic temperatures to moderately high temperatures. However, exposure to temperatures of Incoloy 825 Seamless Pipes with above 1000 Degree F can result in micro structural changes that significantly lower ductility and impact strength. Incoloy 825 Welded Pipes is approved for pressure vessel operating temperatures up to 525 Degree C (AS1210, AS4041), 538 Dgeree C (ASME Boiler & Pressure Vessel Code, Sections I, III, VIII, IX, Cases 1936, N-188). Incoloy 825 Seamless Tubes can be used primarily in applications where some pitting can be tolerated. Incoloy 825 Welded Tubes is superior to conventional stainless steels such as 316L. However in seawater uses, these Incoloy 825 EFW Pipes does not offer similar levels of resistance as SSC-6MO or Alloy 625.

To maintain these properties during fabrication in Incoloy 825 ERW Pipes, subsequent anneals should be performed between 1700 to 1800 Degree F (930 to 980 Degree C) followed by rapid air cooling or water quenching. Incoloy 825 EFW Tubes is classed as a ‘C’ alloy, and is reasonably easy to machine. The joint in Incoloy UNS N08825 Pipes Tubes must be clean to avoid contamination of the weld pool, and thus heat treatment in the lower end of the range is acceptable for stabilization.

ASTM B163 Incoloy 825 Pipes & Tubes Specification

Size : 15"NB TO 150"NB IN

Incoloy 825 Seamless Pipes and Tubes : ASTM B407, ASTM B163, ASTM B423

Incoloy 825 Welded Pipes and Tubes : ASTM B514, ASTM B515, ASTM B704, ASTM B705

Standard : ASTM, ASME and API

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Length : Single Random, Double Random & Required Length

Types : Seamless / ERW / Welded / Fabricated / CDW

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End : Plain End, Beveled End, Treaded

825 Incoloy Pipes & Tubes Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT
Incoloy 825 Pipes & Tubing Chemical Composition
Grade C Mn Si Cu S Ni Cr Fe Ti Al Mb
Incoloy 825 0.05 max 1.0 max 0.5 max 1.5 – 3.0 0.03 max 38.0 – 46.0 19.5 – 23.5 22.0 min 0.6 – 1.2 0.2 max 2.5 – 3.5
Incoloy 825 Pipes & Tubes Mechanical & Physical Properties
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Incoloy 825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
