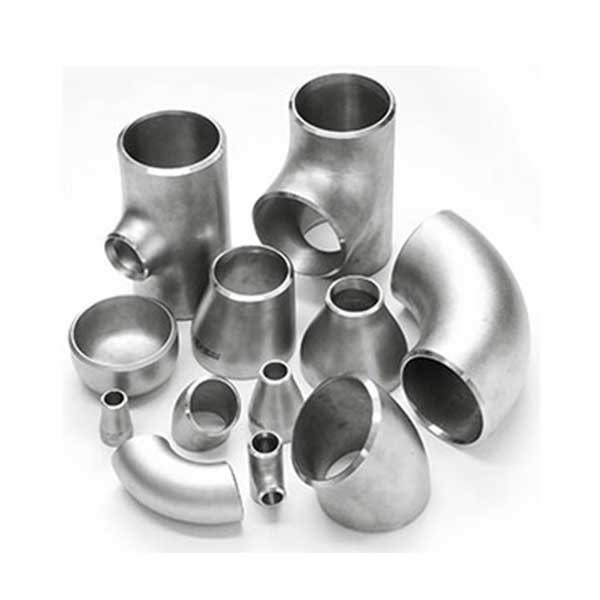

Hastelloy C276 Fittings

Hastelloy C276 Fittings

Metal Yard is a prominent supplier of Hastelloy C276 Pipe Fittings, which is voluntarily made-up by welding, utilizing approaches same to those used for nickel-based steels. Hastelloy C276 Butt Weld Fittings is one of the few alloys resistant to wet chloride gas, hypochlorite and chlorine dioxide solutions. Some usual applications of Hastelloy C276 Butt Weld Pipe Fittings comprise machinery parts in petrochemical and chemical organic chloride methods and procedures using acid or halide catalysts. Although there are several variations of the Hastelloy nickel alloy, Alloy C276 Pipe Fittings is by far the most widely used. Alloy C276 Butt Weld Fittings is used in flue gas desulfurization systems because of its excellent resistance to sulfur compounds and chloride ions encountered in most scrubbers. Alloy C276 Butt Weld Pipe Fittings has excellent resistance to pitting and to stress-corrosion cracking. Nickel C276 Butt Weld Fittings has excellent resistance to robust solutions of oxidizing salts, like cupric and ferric chlorides. Nickel C276 Butt Weld Pipe Fittings is known as the most universally corrosion resistant material available today. Nickel C276 Pipe Fittings is used in a variety of environments from moderately oxidizing to strong reducing conditions.

All of the common methods of welding can be used to weld HASTELLOY C-276 alloy pipe fittings, although the oxyacetylene and submerged arc processes are not recommended when the fabricated item is intended for use in corrossion service. We offer a wide selection of Nickel Alloy C276 Fittings, where our manufacturing of the same are supplied and exported all around the world.

ASTM B366 Hastelloy C276 Pipe Fittings Specification

Size : 1/2"NB TO 12"NB IN

Specifications : ASTM B 366 / ASME SB 366

Standards : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Schedule : 10, 20, 40, STD, 60, 80, XS.

Type : Seamless / Welded / Fabricated

ASTM B564 Hastelloy C276 High Pressure Forged Fittings Specification

Size : ⅛” to 4”

Specifications : ASTM B 564 / ASME SB 564

Standards : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Class : 2000 LBS, 3000 LBS, 6010 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

C276 Hastelloy Pipe Fittings Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Hastelloy C276 2.4819 N10276 NW 0276 - ХН65МВУ - NiMo16Cr15W ЭП760
Hastelloy C276 Butt weld Fittings Chemical Composition
Grade C Mn Si Co S Ni Cr Fe Mo W V P
Hastelloy C276 0.010 max 1.0 max 0.08 max 2.5 max 0.03 max Bal 14.5 – 16.5 4 – 7 15 – 17 3 – 4.5 0.35 max 0.04 max
Hastelloy C276 Butt weld Pipe Fittings Mechanical & Physical Properties
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %
C276 Hastelloy Forged Fittings Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Hastelloy C276 2.4819 N10276 NW 0276 - ХН65МВУ - NiMo16Cr15W ЭП760
Hastelloy C276 Forged Pipe Fittings Chemical Composition
Grade C Mn Si Co S Ni Cr Fe Mo W V P
Hastelloy C276 0.010 max 1.0 max 0.08 max 2.5 max 0.03 max Bal 14.5 – 16.5 4 – 7 15 – 17 3 – 4.5 0.35 max 0.04 max
Hastelloy C276 High Pressure Forged Fittings Mechanical & Physical Properties
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %
